Whenever I opened the drivers door on my 1967 Cadillac Eldorado the interior lights would not come on. Only the red warning light in the door lit up. Everything worked from the passenger´s side though. So I had to check out the door jamb switch. I unscrewed it and checked the three cables going into it. One cable is for the warning light in the door, one for the front interior lights below the dash and one for the rear interior lights in the C-pillar. I made sure that all contacts were in place and had to bend them a little. After a little tweaking the lights started to work again. When I screwed the switch back into place, the rear lights went out again. So I had to adjust the contacts once again and now everything works perfectly. Great to have the interior lights come on again when I step into the car.

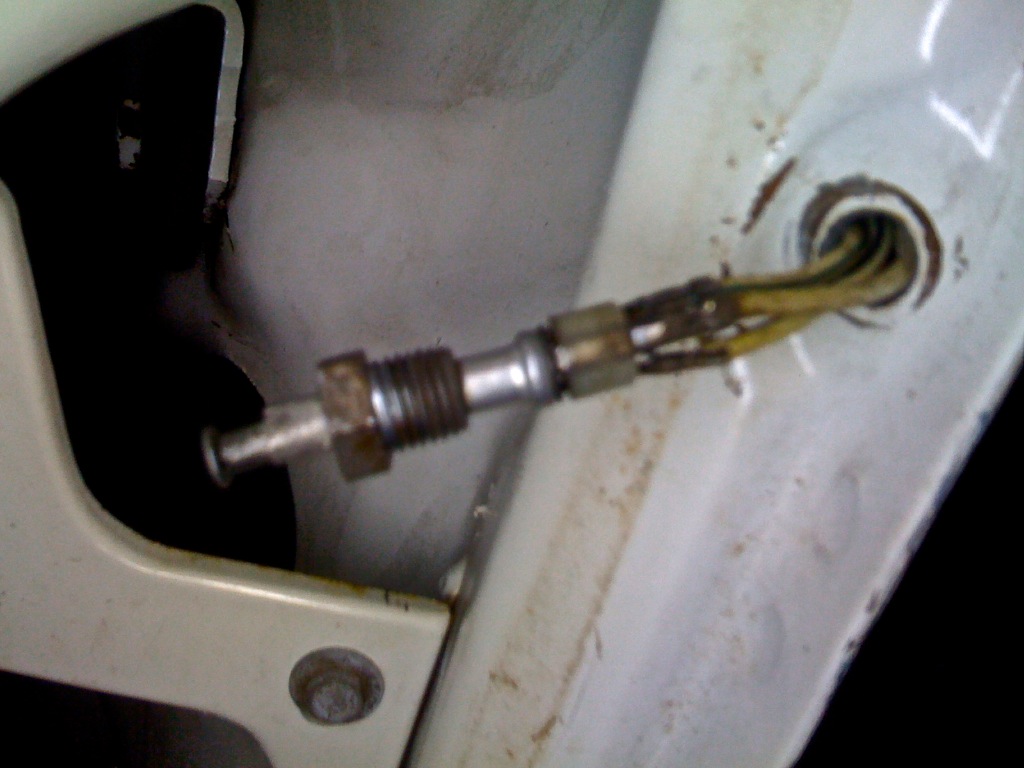

This is how the doorjamb switch looks like on a 1967 Eldorado when removed. Sorry for the crappy cell phone picture!
I will have to clean the paint in the doorjambs soon as you can see in this picture...

Tags:Restoration, 1967, Eldorado, Door Jamb Switch, Wiring

As we had an unusual warm day today with the snow melting in front of the garage, and having a couple of hours of spare time at hand, I decided to drive the Eldorados out of the garage. They both started right up as soon as the fuel pump delivered fuel to the fuel bowl. Both cars idled beautifully and it was a pleasure to see them in the bright daylight again for the first time since last October when I had put them into storage.

While I had the 67 Eldorado out I also turned on the headlights and was once again annoyed by the fact that the right one opened simultaneously, but closed slightly slower than the left one when I turned the lights off. There was a difference of around 1 second in movement between the two headlight doors.
Being a perfectionist I could not stand this, so I began searching for the problem. I already had spent some time in the past trying to fix this, but I did not succeed. The system is driven by vacuum only, so I started to look through the vacuum hoses once again. I had already exchanged a couple of them last year. I found another two brittle ones going through the firewall to the headlight switch from where a slight hissing sound was coming when the lights were on. When I touched them the hissing would become even more noticeable. I then tried to press them onto the connector of the switch and the first hose began to crumble into pieces. So I replaced all the hoses on the switch and rerouted them through firewall through the rubber insulation. There are three hoses . One is the vacuum feed (the one in the middle - I think it was yellow), one is for opening the doors (green) and one for closing (red). I also replaced the red hose behind the firewall going to a T-connector from where the vacuum is fed to the headlight door actuators. I had already replaced the two hoses after the T-connector in the past. With all new hoses in place the doors now perform almost simultaneously and quite fast. So when you run into troubles with your headlight doors, check and replace all the according vacuum hoses first. Its amazing how brittle the hoses going to the headlight switch inside the car can become over the years. It looks like they used a quite different material for these three hoses, as all other vacuum hoses are in much better shape and do not show any sign of deterioration at all.
You can see a video of the headlight doors in action below. On this video they are slightly not synchronic. As it looks like they are slightly different every day, depending on temperature and engine idle...

While the Eldorados were outside the garage my wife used the opportunity to shoot a couple of pictures she had in her mind, which she is planning to hang into the kids room. Cant wait until the medium format film is back from the photo lab. Below you can see only some digital snap shots I took.
Despite the last two unusual warm and beautiful days unfortunately winter is not over yet here in Austria, as some more snow is predicted for next week and the cars are back in the garage desperately waiting for April to come...

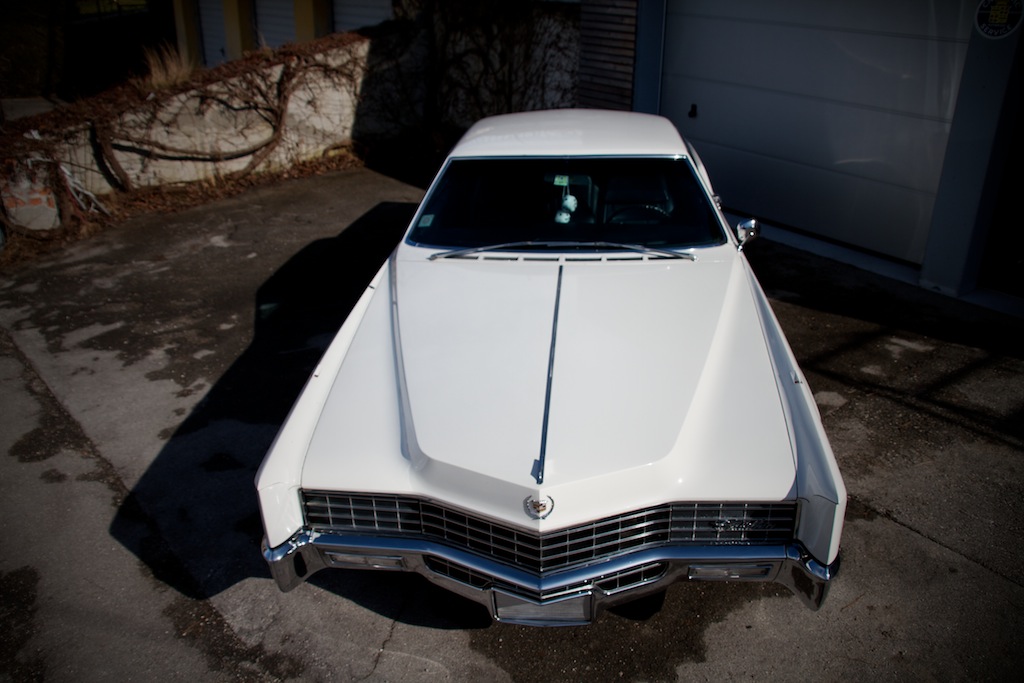

the Eldorado is enjoying some sun rays for the first time this year

although she is 7 months pregnant, my wife Afra is still climbing ladders to get the best angle for her shots...

the two Eldorados in front of the garage where the snow has just melted away.

Tags:1967, Eldorado, Headlights, Actuators, Headlight doors, Restoration, Video, Vacuum hoses

Today I could finally fix the issue with the broken wires in the passenger door. Because of these broken wires there were some issues with the power vent windows. You can read about the problem here.
Today I started to repair the broken wires by soldering them together and put some heat shrinking tubes and electric tape around the repaired areas.
You can see some image below. More of them can be found in the restoration section.
Everything now works as it should! Lets hope that the repaired wires wont break again any time soon

Next up - repair the door jamb switch of my 1967 Eldorado and install a new power seat transmission as the front up/down solenoid does no longer work and therefore does not engage the according seat transmission. This will involve removing the front bench seat which is very heavy... Oh it is so much fun owning these cars!

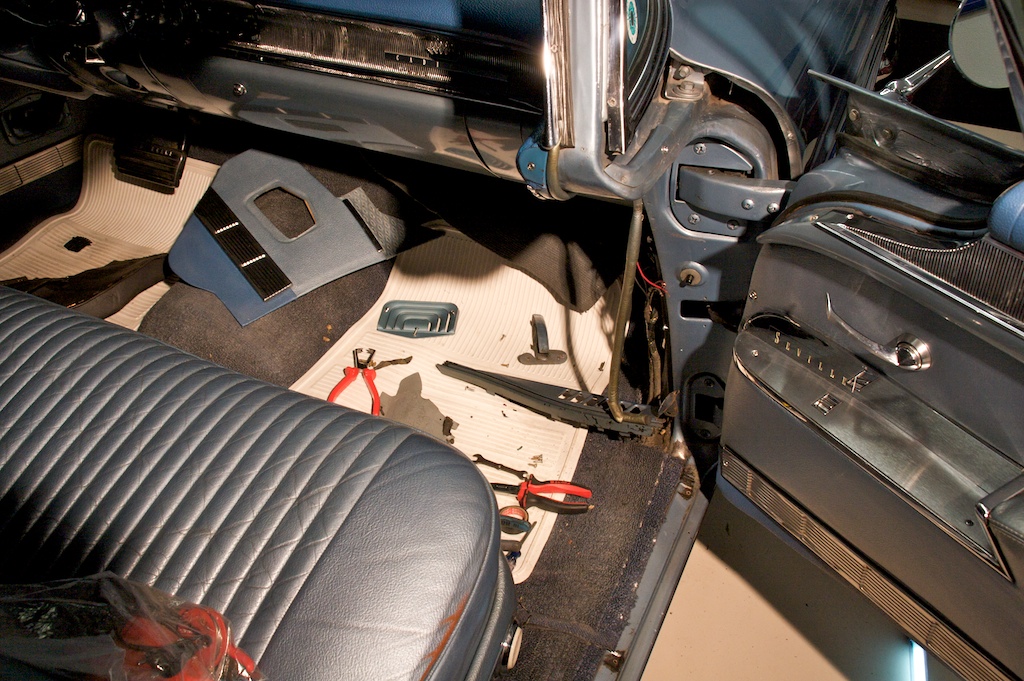

I removed the kick panel, heater-box and door sill scuff plates to get access to the broken cables.

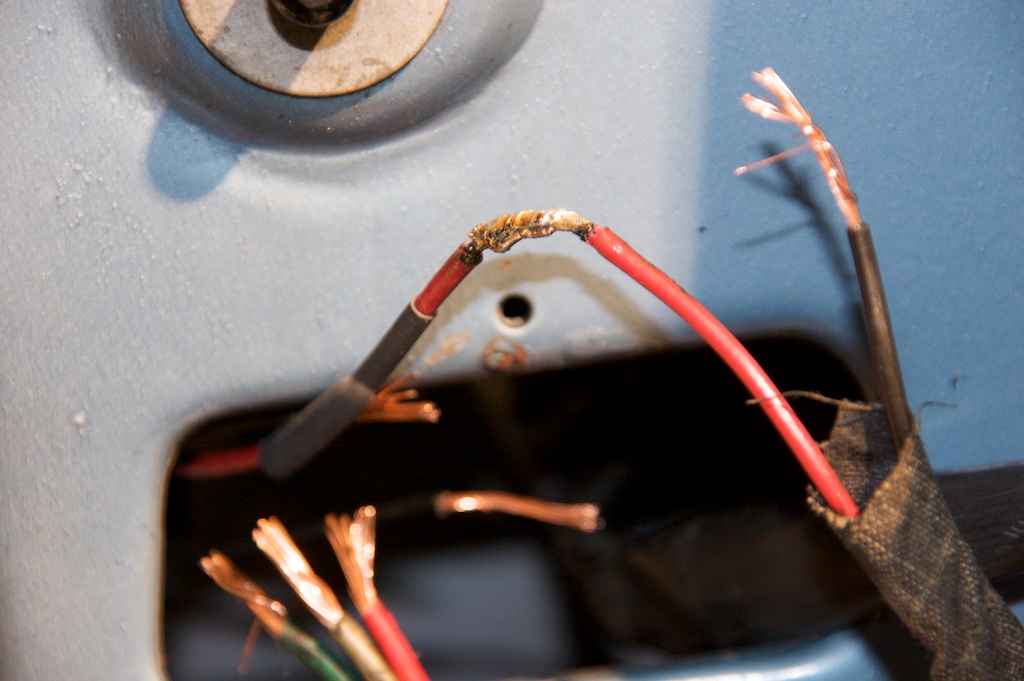

they broke at the area where all the bending is taking place when the door is opened. Here the first wire is already soldered together

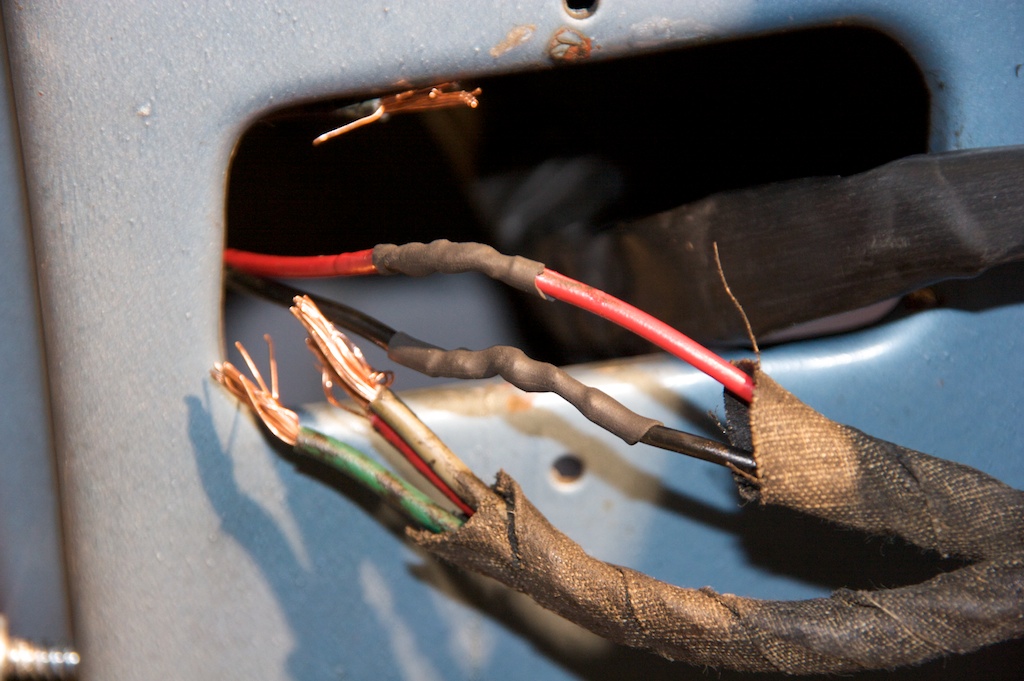

I put some heat shrinking tube around it after soldering

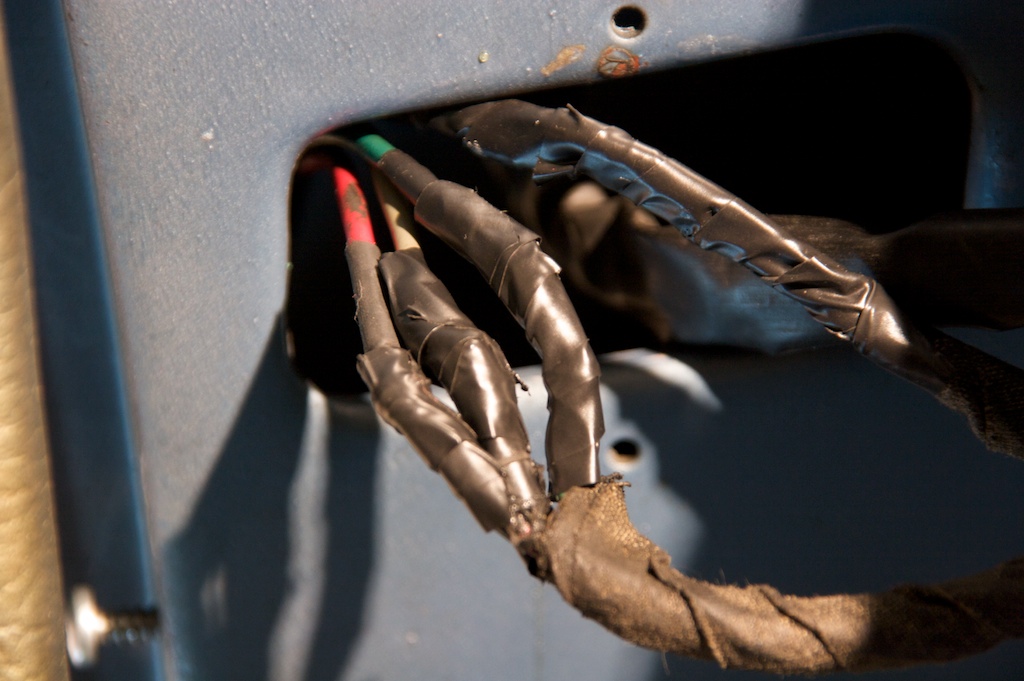

just to be sure I wrapped some more electric tape around it

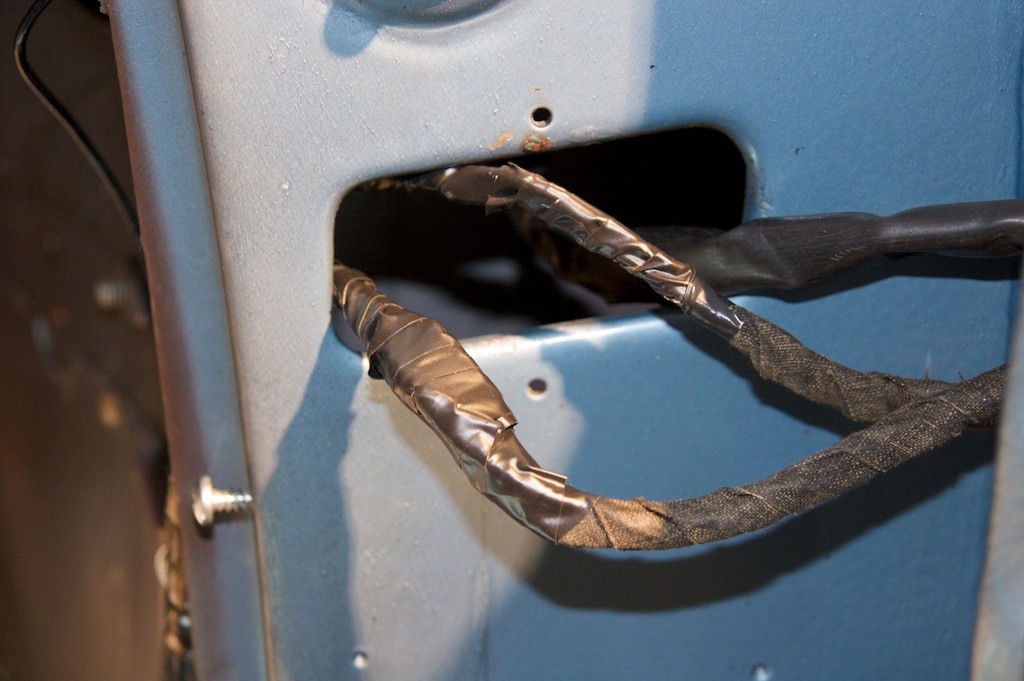

all the wires are back together

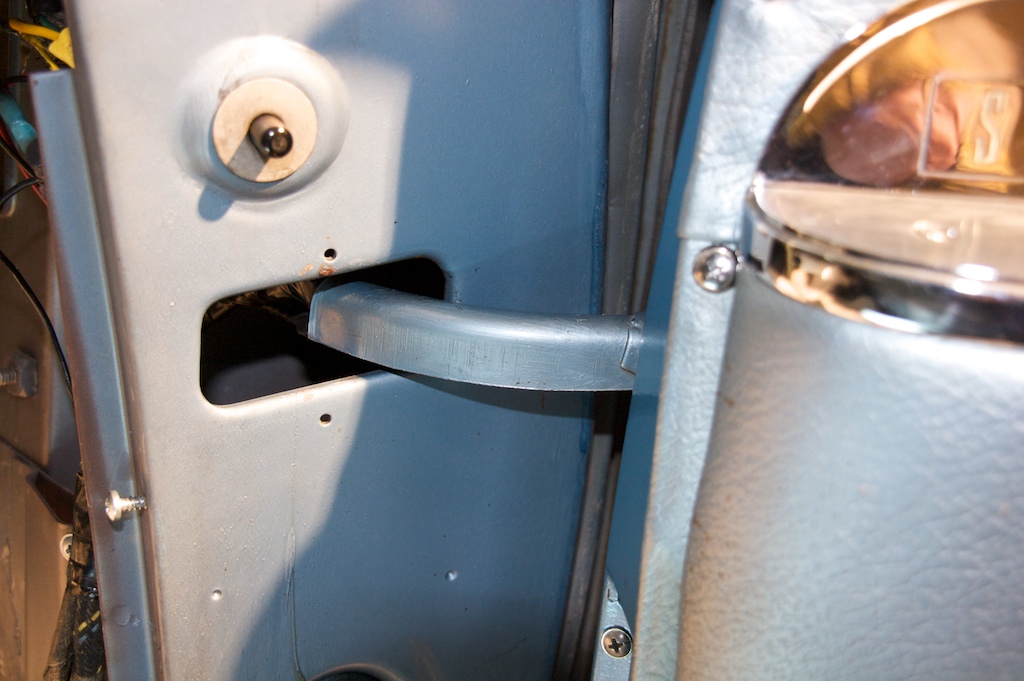

the wires are back together in the metallic tube going through the door

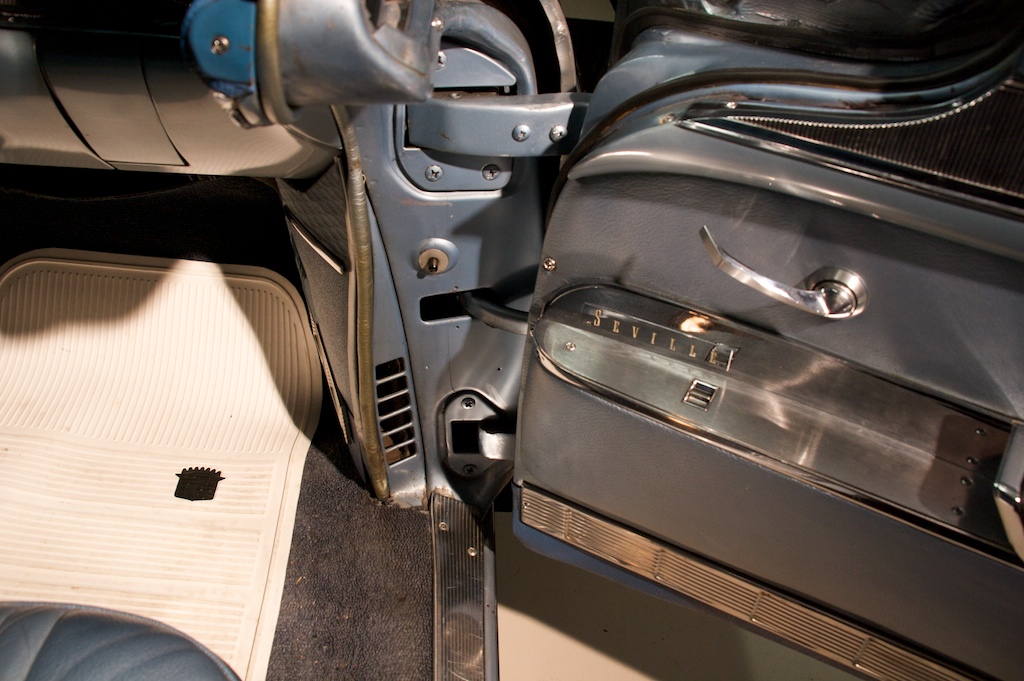

kick panel and everything else back in place. Everything works as it should now.

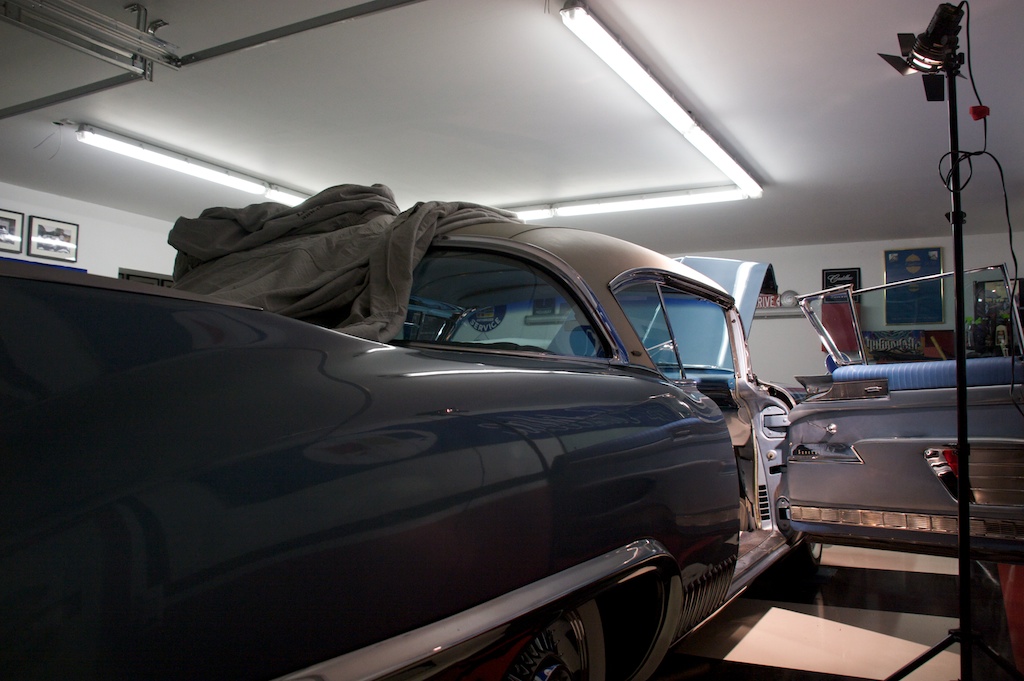

as I work as a cameraman I had a good film light at hand to light the working area properly.

Tags:Wiring, 1958, Eldorado, Power Vent Windows, Restoration

A while ago I thought that I had already fixed an issue with the wiring of the power vent window in the passenger door.
Yesterday when I was repairing the 6 way power seat which had a contact problem somewhere at a solenoid - suddenly the power vent window started to close itself when I shut the door. So the problem was back! (At least the power seats do work perfectly now!)
So I decided to spend the day in the garage - rewiring the 58´s passenger door as there definitely was a short somewhere in the power vent window circuit. Thats the kind of work I absolutely HATE! 52 years of bending the wires whenever you open the door took its toll.
The bug was easily found after I removed the kick panel, door sill plates, parts of the heat tubing, and the metal tube which is going through the door to protect the wires. 5 (!) cables were broken and only held together by the original fabric covering around it. The cables all broke exactly at the end of the tube where all the bending is going on when the door is opened. I will now have to splice the cables back together somehow and get them back into the tube. No idea how I will do this - I will have to buy some electric supply material first, but the shops are all closed over the weekend. I´m still stunned that the windows still worked and the only sign of failure was that they started to open or close themselves sometimes when I opened the door, and that the battery was drained at one occasion. I guess I was lucky that the car did not catch fire...

UPDATE - Feb. 8th:
I fixed it - read everything about it above or by clicking on this link!

Tags:1958, Eldorado, Wiring, Power Vent Windows, Restoration
