1978 CADILLAC ELDORADO HEATER CORE REPLACEMENT

I had to change the heater core of my 78 Eldorado.Details coming soon! Its almost identical to the repair of my 74´s heater core!
edgeedgeedge
Comments

THE 1966 UNDERCARRIAGE PROJECT - LONG POST!

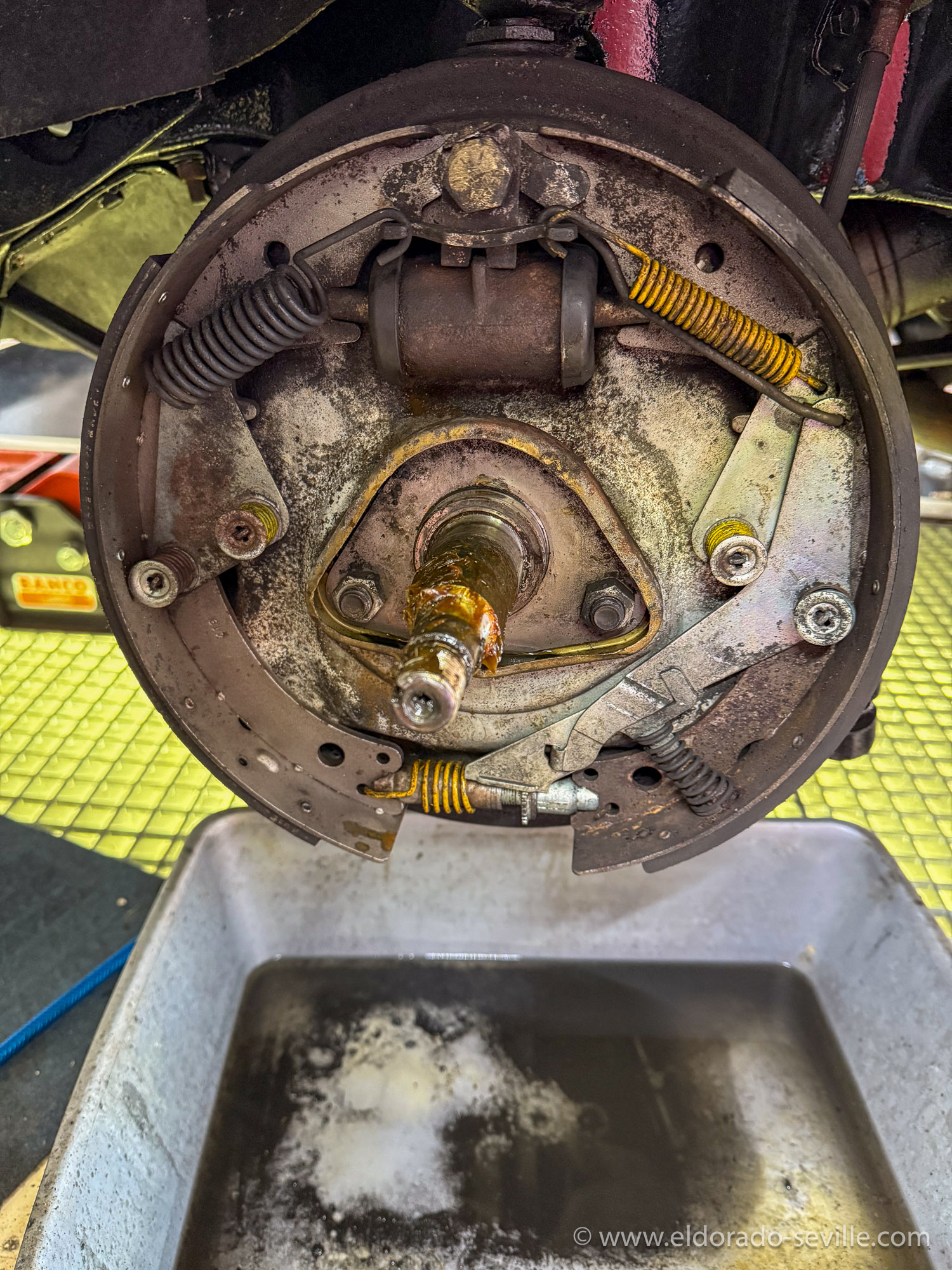

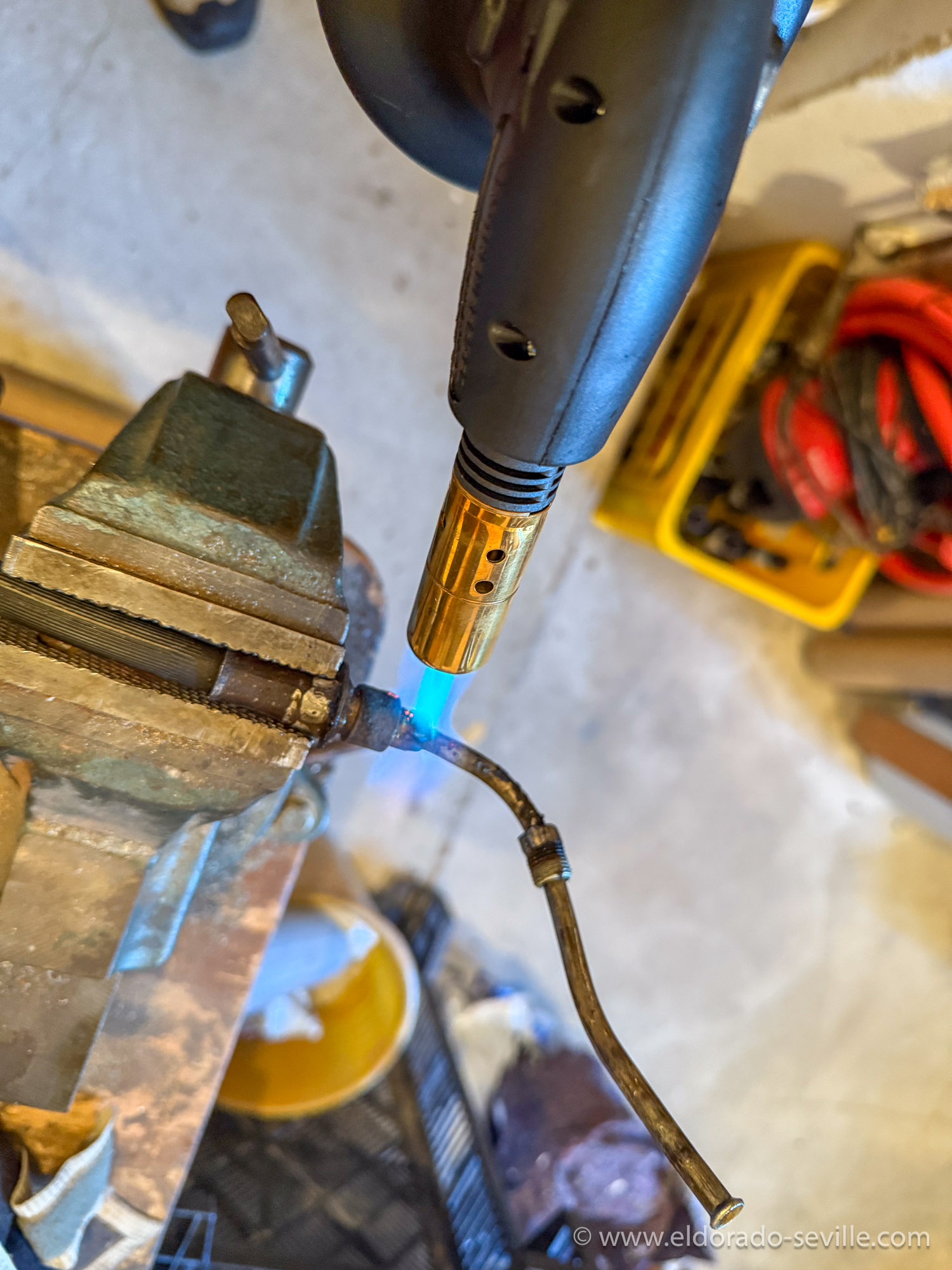

Last fall (2021) the undercarriage project of my 1966 Cadillac Coupe deVille started. The car is in fantastic condition. The factory or dealer applied rubberised undercoating was still on the car, but on some areas it was dry and brittle. In areas where it was not applied there was some slight surface rust which I also completely removed.

VIDEO RECAP

I did not plan to do a video about the restoration, but here is a short collage of some footage I had: (on youtube you can watch it in 4k HDR


This is a short video showing what was done

BEFORE

Some "BEFORE" pictures showing how the car looked before I started working on it.
IMG_7648 2

IMG_7651 2
IMG_7653 2

AFTER

This is how it looks now - after all the work I did. Click to see the full report._DSC0163_DSC0162

READ MORE...
Comments

1978 ACCELERATOR PUMP REPAIR

My low mileage 1978 Eldorado Biarritz ran super nice. It idled like a clockwork but it sometimes had one problem:
The car would have a slight hesitation for one or two seconds when driving away from standing still and idling. The hesitation was not present at any higher speeds - only when starting from standing still, no matter how hard I hit the pedal.
Once the car was rolling, it ran perfectly. 2 or 3 times the engine even stalled in the past.
That's why I suspected the accelerator pump.
Replacing it is not too difficult. You basically only need a rebuild kit and remove the carburetor from the car. Then you have to remove 8 screws to take the top off and remove 2 linkages. I'm not a carburetor expert at all, but luckily my friends ,who did the job before, helped me, but it really is not difficult at all. I found some great how-to video on YouTube on how the Quadrajets are taken apart and back together - They have some very informative videos on their youtube channel - here is one of them:

1978 Cadillac Carburetor QuadrajetThe Quadrajet after removal.78carbopen-IMG_8059
The Quadrajet with the top removed
accpump-IMG_8058bgThe accelerator pump on the right sidecarbmonday2guys
My friends Steve and Lucky helped a lot. Thanks my friends! We did all the work in Luckys fantastic garage and shop.
carbmondaysteve+gerald
friendsandcarbsWe had "Carburetor Monday" as everybody was working on their carburetors.

We replaced the pump rubber and put everything back together. The carburetor looked very clean inside with only minor deposits, so we left everything else as it was.
I can't wait to install it back into the car and hope the problem is fixed - did not do a full rebuild as it is still very clean and nice inside. Only installed new rubber on the pump and new top gaskets. Hopefully the problem is fixed now. I will update the page once the carb is back in the car.

Comments

WINTER PROJECTS FOR 2019/2020

In September I put my cars into winter hibernation and the projects for this winter will be:

1978 Cadillac Eldorado Biarritz:
  • Rebuild the Quadrajet carburetor as the car has some hesitation when accelerating from standstill. Probably the acceleration pump has a problem.
  • Check EGR valve.
  • The water pump is slightly squeaking (maybe I will have to replace it)
  • The AC controller under dash is sometimes making a ticking noise. Looks like a bad contact somewhere causing the setting motor to rattle.
  • AIR pump is making a light noise - a well known problem with these old pumps.
1967 Cadillac Eldorado:
  • Rebuild AC compressor as it blew its main front gasket a while ago.
IMG_2453

The cars waiting inside the garage for spring to come…IMG_2926
Inside my home garage where I do all the work. First project will be to re-organize my garage and tools.

Comments

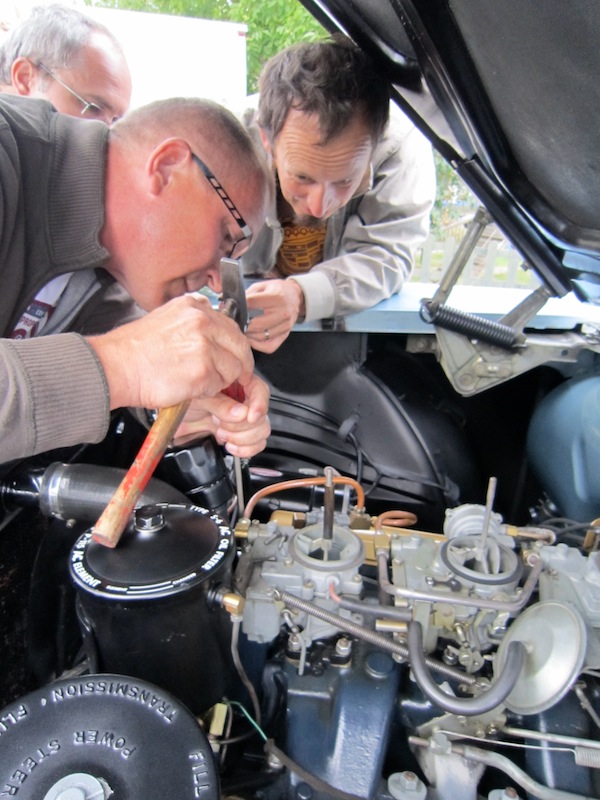

CHANGING THE FUEL PUMP OF MY MARK III

Today I finally found the time to replace the leaking fuel pump of my 1971 Lincoln Continental Mark III. It probably leaked because I did not drive the car for a longer period of time last year. It seems that there is a gasket inside which leaked when the car was parked for a few days. After a few minutes it would stop leaking, but of course this had to be fixed.

The fuel pump is not exactly easy to replace because of its location and very limited accessibility to the two mounting screws.
I had to remove the oil filter and also loosened the power steering pump....
CLICK BELOW TO READ MORE
IMG_1675

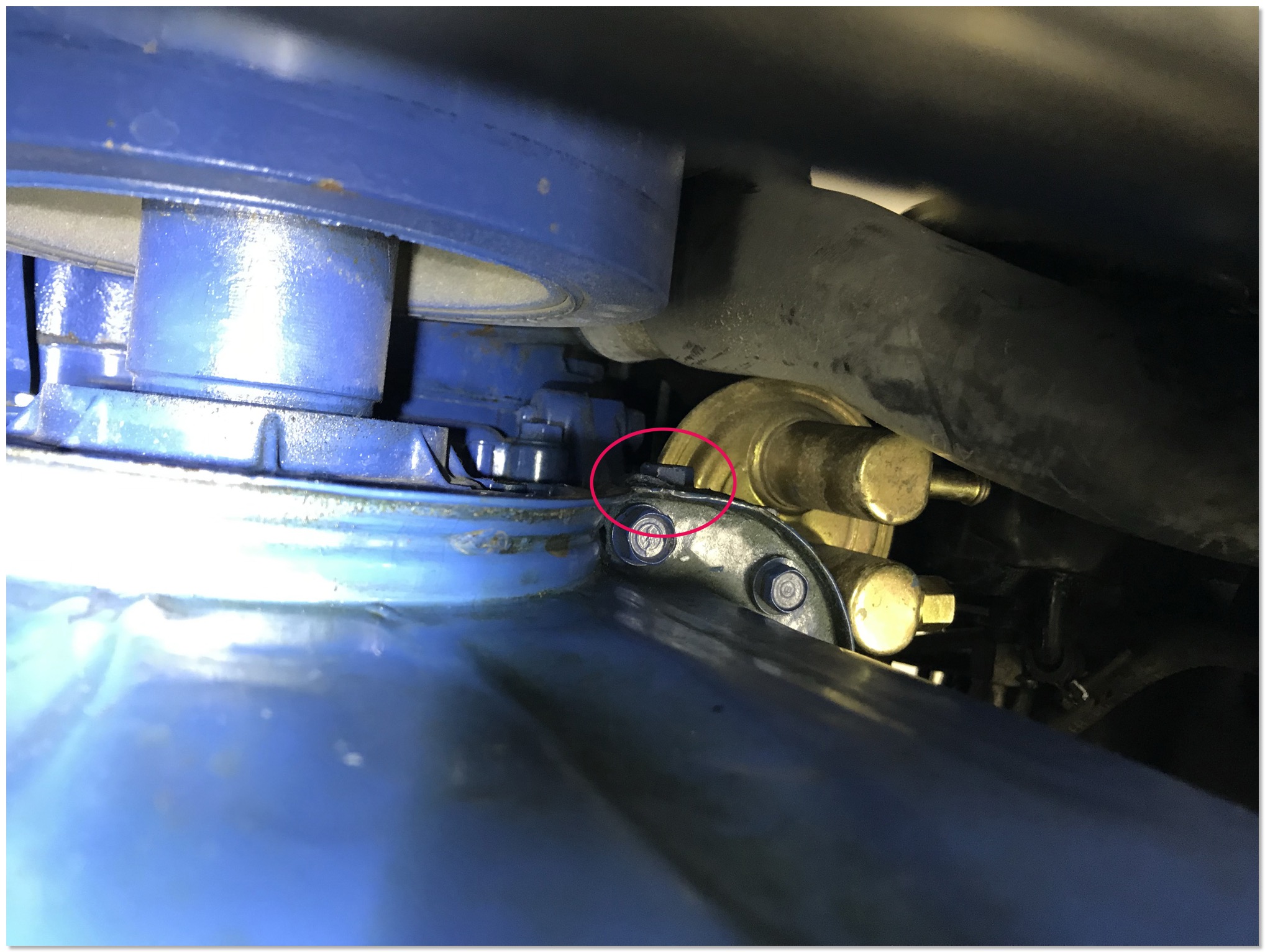

Changing fuel pumps normally is an easy repair - but getting the two mounting bolts out on the 460 engine takes a lot of patience.

READ MORE...
Comments

MY WINTER PROJECTS 2018/19 - CV BOOTS AND FUEL PUMP

This are my two winter projects for the 2018/19 winter:😞
The Mark III has a leaking fuel pump if it was parked for more than an few days... (It stops leaking after its running for 2 minutes...).
The 1978 Eldorado needs both CV boots replaced ( the original ones just came loose but did not rip after only 40 years slinging grease everywhere). The 78 will also need some minor exhaust work (welding) and either the EGR valve needs to be replaced or the accelaration pump in the carburetor has a problem... it won’t get boring in the dead car season… I had hoped that I wouldn’t have to spend any…

The two "patients" in the shop

READ MORE...
Comments

CLEANING THE UNDERCARRIAGE OF THE "NEW" 1996 BUICK ROADMASTER

A project that kept me busy for the last few months was to bring back our "new" Roadmaster to its former glory. The car has only 23k miles on the odometer and in many areas still looked like new. The undercarriage was not protected very well from the factory and like on all cars had developed some surface rust over the last 2 decades although the car never was stored outside nor regularly driven in the rain. It also never saw road salt or snow during its entire life. Below are some before pictures where you can see the fantastic condition the car was in before I started cleaning it up.

This is how the car looked like after dry ice cleaning.

READ MORE...
Comments

THE RESTORATION OF MY 1967 ELDORADO IS FINISHED

Yesterday was a very exciting day for me.
The restoration shop let me know that my 67 Eldorado was finished and ready for pick up.
After work my wife and I jumped into the car and drove 2 hours to Radstadt where the restoration shop is located.

I saw the finished car for the very first time.
The job Bernd Preussler and his small team did is amazing. The paint job is the best I have ever seen. Their commitment to details is outstanding.
edge

The small team that restored my Cadillac. Thank you so much for your great work! You are my heroes!
Michael Hammer, Bernd Preussler, Angela Steiner (from left to right)


READ MORE...
Comments

THE 1967 ELDORADO RESTORATION - WHAT WE HAVE LEARNED SO FAR...

LONG POST AHEAD!

Whenever you restore a car you can learn a lot about it. The ongoing restoration of my 67 Eldorado is taking a little break now, and here is a summary of things we have learned so far during the restoration process:

There seems to be a design and/or a problem at the front windshield which causes rotten floors and rust in the A- pilar:
Although my car is a low mileage car (28k miles) with no other real rust issues, the front floor of my car had to be replaced as we found out when the carpet was removed. I have heard some similar stories from fellow Eldorado owners who had the same problem with their cars. Some of them owned very low mileage texas cars and had rotten floors and/or rust in the A-pillar. The water seems to enter at the A-pillar and often causes rust through holes there. It can then seep into the car, where it ends on the front floor, from where it cant evaporate due to the rubber insulation used underneath the carpet. When the windshield on my car was re-installed, we made sure that it seals perfectly and we used some modern material to make sure there wont be any future issues. The front floor on my car had to be replaced as you can see on the pictures of my restoration gallery.

edge
The cut out front floor.

READ MORE...
Comments

THE 1967 ELDORADO HAS NEW PAINT!

Evenings are very exciting for me since last November… The reason for this is because the restoration shop, which is repainting my 67 Eldorado at the moment, is always uploading pictures of the days progress to a web server after work.
Today was especially exciting. I saw the Eldorado in its new paint for the first time!
Doesn't she look spectacular in its fresh coat of "Atlantis Blue Firemist! ?
Bernd and his team did an awesome job so far as you can see in the restoration gallery.
There is still tons of work left - but everything looks very promising so far.

edge
In the paintbooth with fresh paint.
edge
First time in the sunlight, with the first trim parts already installed.

Comments

REPLACING THE FRONT FLOOR OF THE 67 ELDORADO

I was a little shocked today when I saw the pictures the restoration shop sent me of my 1967 Eldorado Repaint Project.
While the exterior of the car did not have much rust I was surprised that the front floor of the car had quite a bit of rust.
Some of the previous owners seems to have tried to stop the rust on the floor sometimes in the past by applying a good amount of rust converter, or whatever the black paint was , he applied over the rusty floor.
It seems that it did not help but just made the sheet metal oxidize underneath this sticky mess.

The restoration shop now started to remove this paint just to find some weak metal with some holes in it.
This is when they decided to cut the entire front floor out and replace it with some fresh metal instead.
They had to make a patch panel from scratch as no new panels are available for this car anywhere. The new custom made replacement floor was now welded in.
Like on the factory rubberized undercoating was reapplied underneath the car and the welding seams were sealed with seam sealer.

You can see all the detailed pictures in the restoration gallery here.

I hope this was the last unpleasant surprise for a while…

edge
This showed up when the carpet and the seats were removed…
edge
After removing the black mess, the weak metal and some rust holes showed up.
edge
Unfortunately the original floor had to be cut out…
edge
Big hole in the floor.
edge
A new custom made patch panel is fitted and will be welded in.
edge
The new custom made patch panel as seen from the underside.
edge
The new panel is completely patched in.
edge
Seam sealer was applied like it was done at the factory. In the factory they just painted over the seam sealer. We will do the same here.
edge
This car came with factory applied rubberized undercoating which was re-applied over the patched floor.

Comments

THE 1967 PAINTJOB PROJECT HAS STARTED

The first pictures of my 1967 Cadillac Eldorado restoration / paint job project are coming in. You can read more details about it here on my website.
The restoration shop is sending me detailed pictures of the process. They are really doing a great job. Very exciting times.
Of course there are the first unpleasant surprises to be seen - there is a little more rust around the rear window than I expected, but still nothing serious. After disassembly we could see that the car is in fantastic shape.

You can find all the pictures of the restoration here on my website as high res pictures.

edge
In the shop - disassembly began. They are cleaning everything up now.
edge
Removal of all the trim and sheet metal
edge
I will also redo the trunk.

Comments

FINISHED THE 1974 CADILLAC ENGINE BAY RESTORATION PROJECT

In September 2016 I started to repair the AIR pump which had a broken pulley bolt. The repair of this little bolt resulted in a partial engine bay restoration, which was never planned. But as I had to take out quite a lot of parts to access the pump I noticed all the flacking paint and surface rust any 43 year old original car develops. I did not want to put all these not so good looking parts back into the car, so I decided to clean everything up and detail everything. It included taking out the radiator, condenser, all brackets, AIR pump, generator, all pulleys, power steering pump, AC compressor, removing all the rust from the parts and repaint them, repaint the engine, have some parts powder coated like the fan, dry ice cleaning, rebuilding the AC compressor, straightening the condenser fins and MUCH more.
Everything that came out was cleaned up, and wherever I found some surface rust or flacking paint it was completely removed and the according part was repainted. I had to do all of this on a very tight budget, but luckily the total cost of this project was extremely low, as all I needed were 3 cans of paint, some wire brushes and some cleaning chemicals .

I took a break from Nov. 2016 to April 2017 where I did not do any car related work at all. During the last 2 weeks I finished everything, and the car is now ready and only needs a good cleaning prior to the upcoming season. When everything was back together the car started up immediately (see video below) but I could not let it run for a longer time yet as the engine enamel (I used Bill Hirsch engine enamel) needs at least 2 weeks to fully cure.

I did not restore parts which still had their original decals, because some are irreplaceable, as there are no correct reproduction decals for the 1974 Cadillac out there. Many decals for sale for the 1974 Cadillac are totally incorrect - beware! For example there is no correct "Caution Fan" decal or AC compressor decal available anywhere. So there is still some patina left on some areas, and at first glance the engine bay does not look restored at all, but more like an extremely well kept car with very low mileage. I did not want to go for this over restored look.

But let the pictures speak for themselves - here are 3 Before/After pictures (Click on them for a larger view) and the rest of the restoration pictures can be found here.

edge
The radiator support frame before, after removing the rust and after painting
edge
The radiator support frame before, after removing the rust and after painting
edge
Before and after rust removal


Here is short video of the first start up after the restoration.

edge

The finished engine bay looks pretty nice!

More pictures of the finished engine bay can be found here.


Comments

A6 AC COMPRESSOR REPAIR - BAD BEARING ON THE 1974

When I bought my 74 the seller informed me that the AC compressor was bad and that it was disconnected due to a bad clutch or another problem. So I ordered a new rebuilt AC compressor with the car.
Due to all the other projects I never managed to get the AC back in fully working order until now.
Unfortunately the rebuilt AC compressor came with the clutch coil terminals in the wrong position. They are available with the terminals at the correct 10 o clock position or the 2 o clock position, which is correct for other years.
If the terminals are in the wrong position you cant connect the original wires to them as they are too short. With the high shipping costs it was no option to send the incorrect compressor back.

As it turned out the cars original compressor had a bad bearing and that was the reason why it was disconnected.

My friends Lucky and Steve were here to help me with the compressor project and so I took both of my compressors to Lucky´s workshop, as he has all the necessary tools and experience with these compressors from his own cars.
Originally I just wanted to turn the clutch coil on the rebuilt compressor into the correct position, but then we decided to rebuild the original compressor instead, because it still has the original decal, which is not available as a correct reproduction. All the available compressor reproduction decals are TOTALLY incorrect for the 1974 Cadillacs. The 1974 reproduction decals all show the wrong amount of refrigerant! They are also different in many other details. The closest match of reproductions for 1974 are the ones from 1972 Cadillacs…

We still disassembled the rebuilt compressor to "borrow" its pulley bearing to replace the bad one on the original compressor.
The procedure to be able to replace the bearing and to turn the clutch coil is not too difficult - but you need some special tools. Without those you cant do it. You´ll need a basic clutch puller / installer set for this job and some long nose snap ring pliers to get the retaining rings out.
First remove the shaft nut and the snap ring ( the rebuilt compressors always seem to come without this snap ring) and then pull the clutch with the special puller. Pull off the pulley and take the bearing out and replace it with a new one.
To be able to turn the clutch coil you´ll have to remove another snap ring. This snap ring was the biggest challenge for us. The shop manual lists a special tool for this which we of course did not have… It could be done with a very long nose plier as well, but we did not have these either. So it took us quite a long time to get it out with screwdrivers and self made hooks… You can then simply turn the coil into the correct position.
Putting it back together is pretty straightforward as well, but again you need a special installer tool to get the clutch back on and to adjust it properly.

I will now have to buy a new bearing so that I can put the rebuilt compressor back together and have it as a spare.
I have attached some pics from the shop manual which show how to remove the various parts of the compressor to remove the pulley and the clutch coil.

As always you can find ALL the pictures in my restoration gallery!

edge
You need some special tools to disassemble the A6 AC compressor.
edge
On the 74´s original AC compressor clutch the bearing was bad.
edge
The compressor clutch removed. You can see the bad bearing inside which is normally sealed. Some balls were already missing.
edge
The clutch with some remains of the bearings.
edge
The clutch and pulley removed on the original compressor.
edge
My friends Steve and Lucky at work. We also replaced all the O - rings.
edge
Removing the pulley
edge
Removing the pulley from the rebuilt compressor.
edge
There is this one snap ring we just did not have the right tool for. The shop manual lists a special plier for this. After a lot of fiddling we got it out eventually…
edge
The magnetic coils on the rebuilt and the original compressor
edge
Lucky in action
edge
Once the snap ring is out you can turn the coils terminals to the 11o´clock position or the 1 o clock position. On the 74 it has to be at the 10 o clock position, otherwise the connecting wires are too short.
edge
Getting this snap ring out was the hardest part on this job, due to not having the right tool for it.
edge
The terminal at the incorrect position at the rebuilt compressor.
edge
We turned the terminal to the correct position.
edge
We sandblasted the pulley while it was out of the car so that I can repaint it now. Note the original decal! All the available reproduction decals are totally incorrect for the 1974 Cadillacs. The reproduction decals all show the wrong amount of refrigerant! They are also different in many other details. The closest match of reproduction decals for 1974 are the ones from 1972 Cadillacs…

edgeedgeedgeedgeedgeedgeedgeedgeedge
